Addressing Modes in Computer Organization
When a processor executes an instruction, it must determine where the required operand is located. The operand may already be part of the instruction, stored in a CPU register, or placed somewhere in memory. The method used to locate that operand is called an addressing mode.
Addressing modes are therefore closely related to instruction execution and memory access. Instead of using one fixed method for every instruction, a processor can use different addressing techniques depending on the type of data being processed. For example, a constant value can be placed directly inside an instruction, while an array element can be located by combining a base address with an index.
The choice of addressing mode affects the instruction format, number of memory accesses, amount of storage required for the instruction, and sometimes the overall execution cost. This is why addressing modes are an important part of Computer Organization and Architecture (COA).
What is an Addressing Mode?
An addressing mode is the rule used by the CPU to determine the location of an operand specified by an instruction.
Consider a simple instruction such as:
LOAD 500
The meaning of 500 depends on the addressing mode selected by the instruction. It may represent an actual memory address, a constant value, or information that must be used to calculate another address.
The processor uses the addressing mode to determine how the operand should be interpreted before the instruction is executed.
Why Do Processors Use Different Addressing Modes?
Different programs require different ways of accessing data. A compiler may need to work with constants, variables, arrays, pointers, stack frames, and branch targets. One addressing technique cannot handle all of these situations efficiently.
For example:
- A constant such as 25 can be supplied using immediate addressing.
- A value already available in a CPU register can use register addressing.
- A variable stored at a known memory location can use direct addressing.
- An array element can be accessed using indexed addressing.
- A branch target can be represented relative to the Program Counter.
- A pointer stored in a register can be used through register indirect addressing.
Thus, addressing modes provide different ways of describing where operands are located without requiring every instruction to use the same address format.

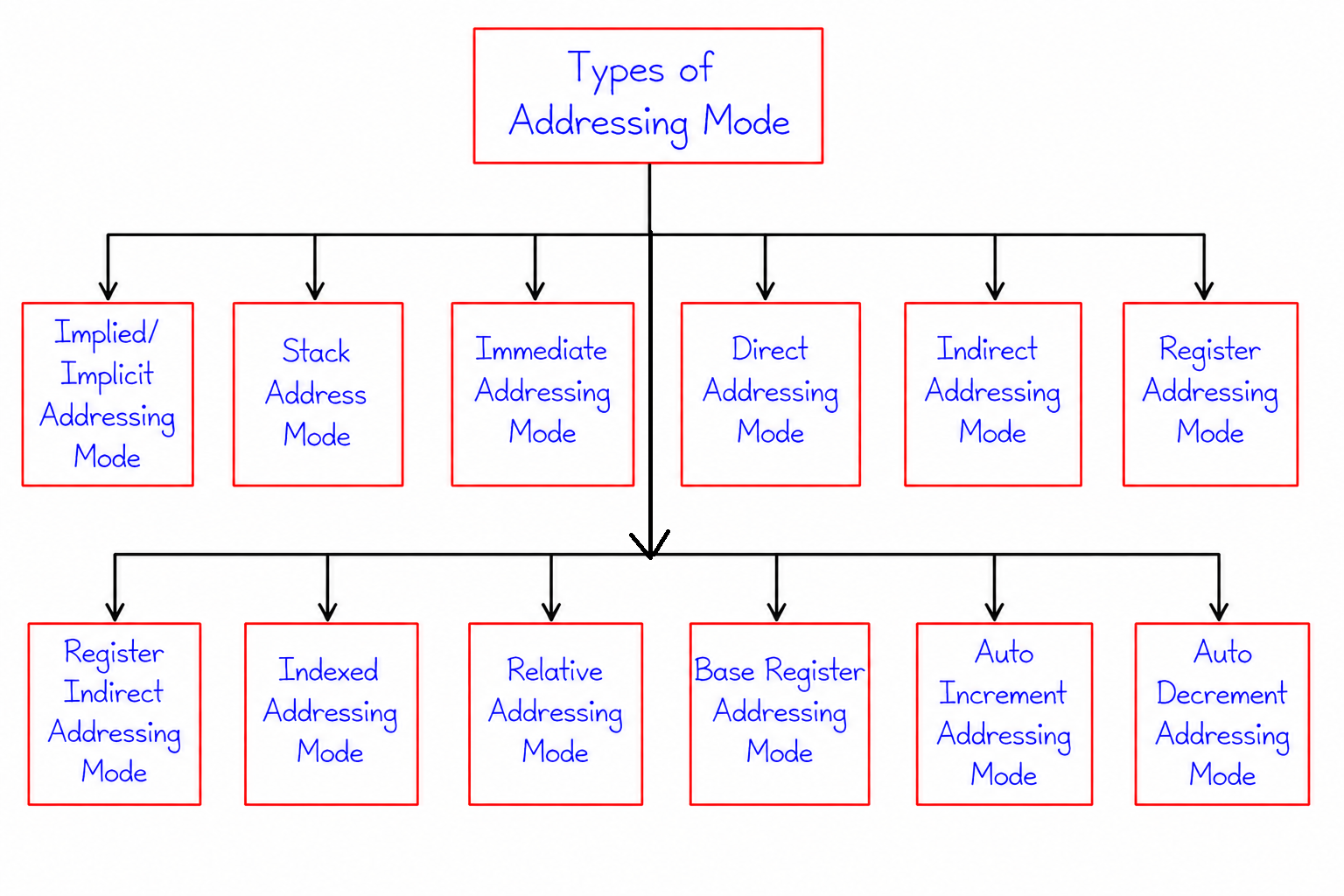

Major Types of Addressing Modes
The commonly discussed addressing modes in Computer Organization include:
- Implied or Implicit Addressing
- Stack Addressing
- Immediate Addressing
- Direct Addressing
- Indirect Addressing
- Register Addressing
- Register Indirect Addressing
- Indexed Addressing
- Relative Addressing
- Base Register Addressing
- Auto Increment Addressing
- Auto Decrement Addressing
Not every processor implements exactly the same set of addressing modes. The available modes depend on the processor's instruction-set architecture.
What is Effective Address (EA)?
The Effective Address (EA) is the memory address obtained after applying the addressing rule specified by an instruction. When an operand is stored in memory, the CPU uses the effective address to locate that operand.
The method used to obtain EA changes from one addressing mode to another.
| Addressing Mode | Effective Address Concept |
|---|---|
| Immediate | Operand is already present in the instruction. |
| Direct | EA = Address field |
| Indirect | EA = Contents of the address field |
| Register | Operand is available in the specified register. |
| Register Indirect | EA = Contents of the specified register |
| Indexed | EA = Address field + Index register |
| Relative | EA = PC + Displacement |
| Base Register | EA = Base register + Displacement |
The term EA is particularly important in memory-based addressing modes because it represents the address that the processor ultimately uses to access the operand.
1. Implied (Implicit) Addressing Mode
In implied addressing, the instruction does not explicitly specify the operand. The processor already knows which operand is associated with that particular instruction.
This is possible because the instruction definition itself determines the operand. A common example is an accumulator-based operation.
Example
CMA
Here, CMA means complement accumulator in instruction sets that provide this operation. The accumulator is understood automatically; the instruction does not need to contain a separate operand address.
Key Characteristics
- No explicit operand address is required.
- The operand is predefined by the instruction.
- It can result in a compact instruction format.
2. Stack Addressing Mode
Stack addressing uses the processor's stack mechanism to obtain operands. A stack follows the Last In, First Out (LIFO) principle, so the most recently inserted item is normally the first one removed.
The Stack Pointer (SP) identifies the current position of the stack. Stack-based addressing is useful for expression evaluation, temporary values, procedure calls, and return information.
Example
PUSH A POP B
The exact interpretation of these instructions depends on the processor architecture, but conceptually PUSH places data on the stack and POP removes data from it.
Where is Stack Addressing Useful?
- Function calls and returns
- Expression evaluation
- Temporary data storage
- Stack-based processor architectures

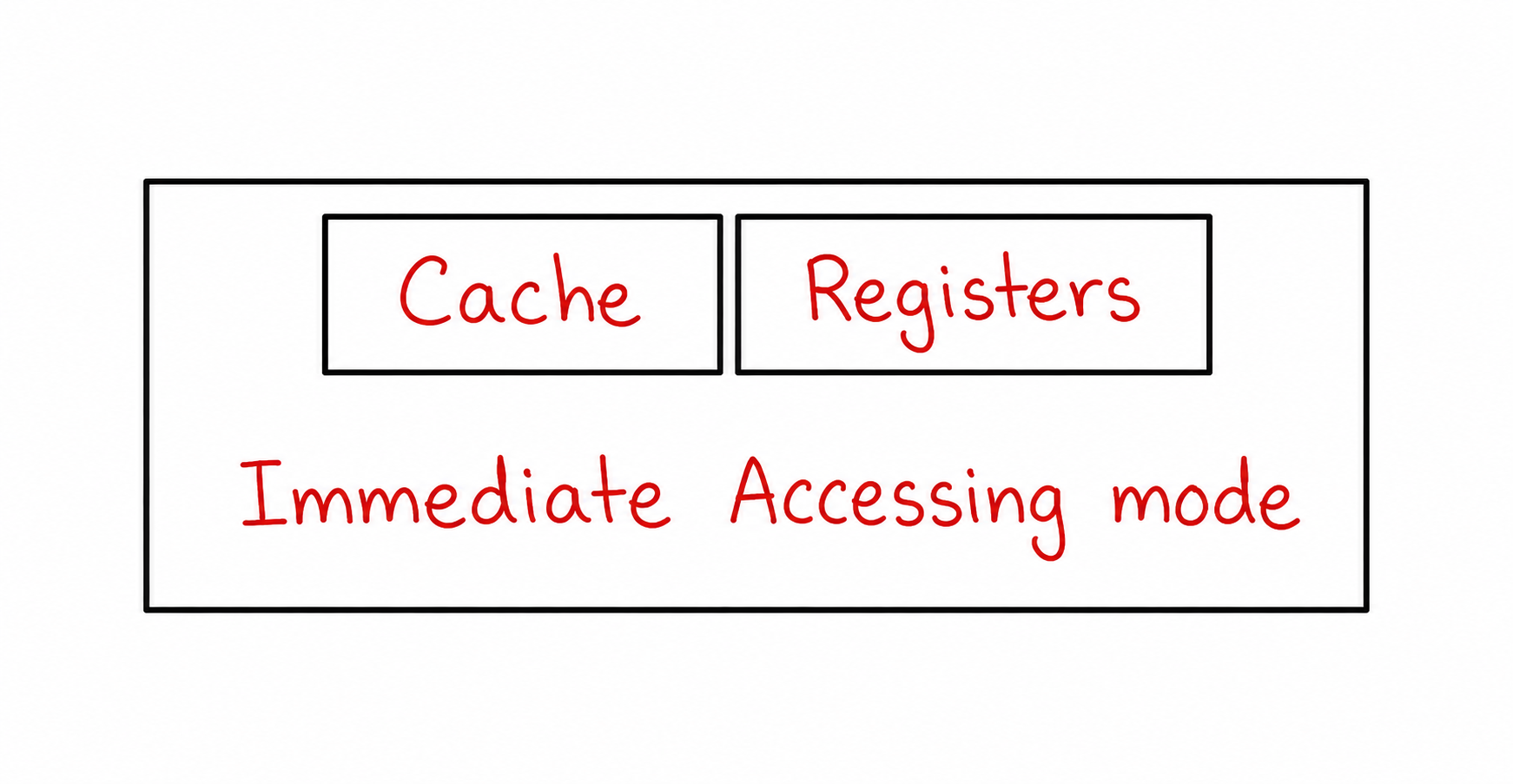

3. Immediate Addressing Mode
In immediate addressing, the actual operand value is included inside the instruction. The processor does not have to obtain that operand from a separate memory location.
Example
MOV R1, #25
Here, 25 is the value to be placed in register R1. It is not interpreted as a memory address.
The symbol # is commonly used in assembly-language notation to indicate an immediate value, although the exact syntax varies between processor architectures.
Example of the Difference
MOV R1, #25
This means the value 25 is used directly.
MOV R1, 25
Depending on the processor's assembly syntax, the second form may represent a memory location or another addressing interpretation. Therefore, the addressing mode must be understood before interpreting an instruction.
Advantages
- Operand is immediately available to the instruction.
- No separate memory lookup is needed for the operand.
- Useful for constants and initialization values.
Limitation
The size of an immediate value is restricted by the instruction format. A very large constant may therefore require a different instruction sequence.

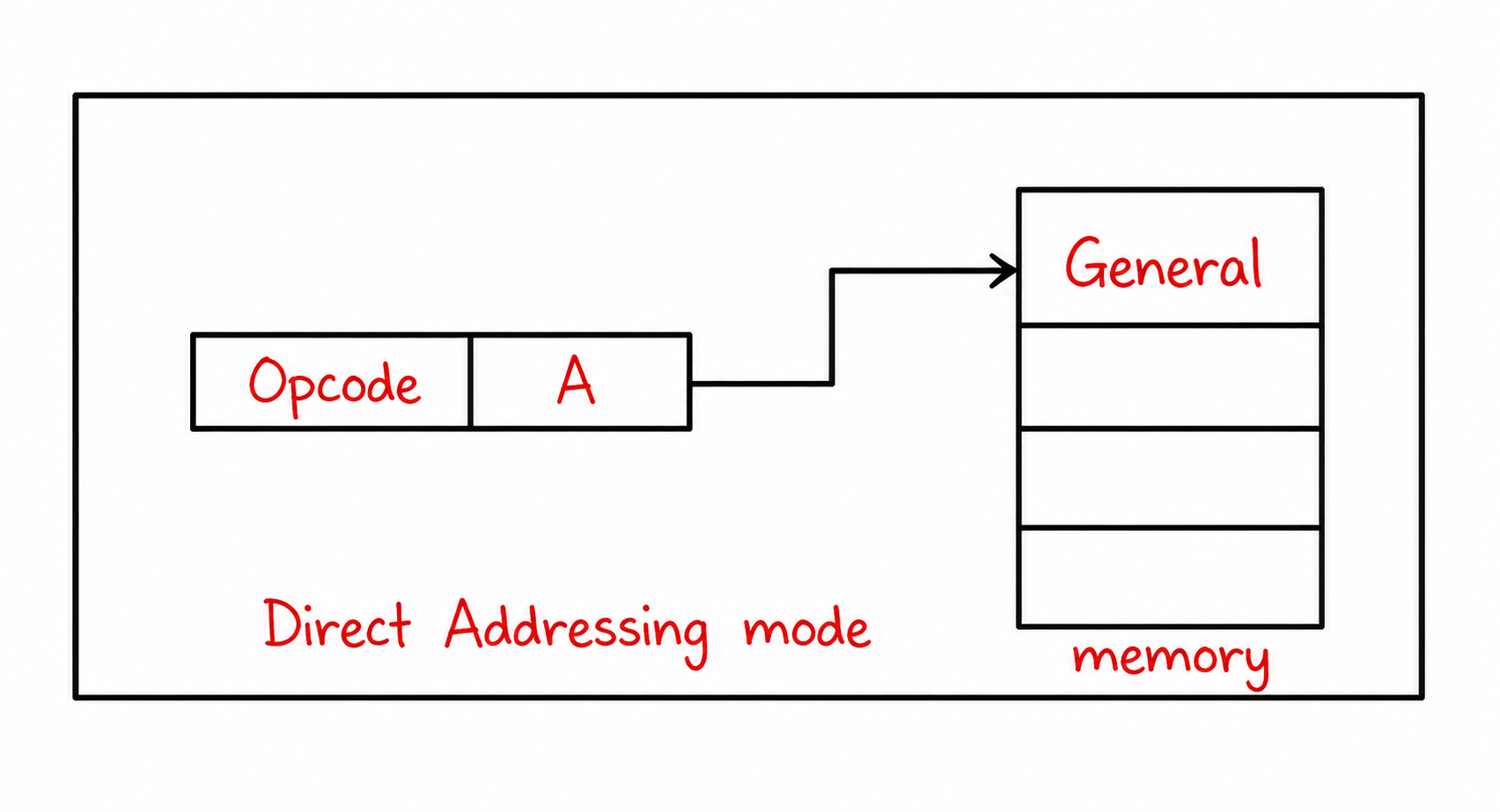

4. Direct Addressing Mode
In direct addressing, the address field of the instruction directly identifies the memory location containing the operand.
Effective Address
EA = Address Field
Example
LOAD 500
If the instruction uses direct addressing, the processor interprets 500 as the memory address containing the required operand.
Suppose:
Memory[500] = 75
Then the instruction retrieves the value 75 from memory location 500.
Characteristics
- The instruction contains the operand's memory address.
- The address calculation is straightforward.
- An additional memory access is required to obtain the operand.
Limitation
The amount of memory that can be directly addressed depends on the number of address bits available in the instruction's address field.

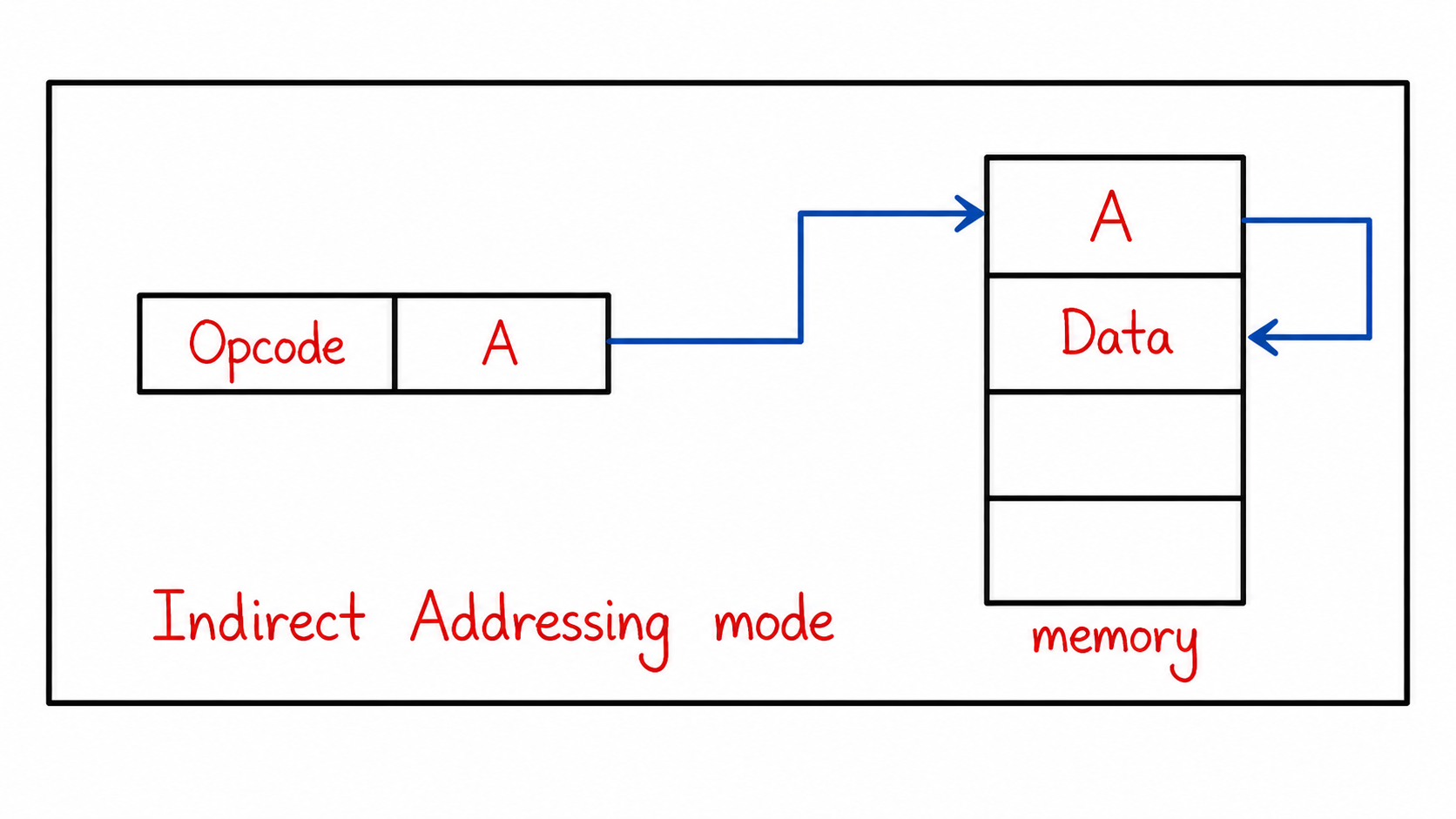

5. Indirect Addressing Mode
In indirect addressing, the address field does not directly identify the operand. Instead, it identifies a location containing the address of the operand.
Effective Address
EA = Memory[Address Field]
Example
Suppose an instruction contains address 500 and the memory contains:
Memory[500] = 900 Memory[900] = 75
The processor first reads location 500 and obtains 900. It then uses 900 as the effective address and reads the operand from that location.
EA = Memory[500] EA = 900 Operand = Memory[900] Operand = 75
This additional level of addressing makes indirect addressing more flexible, particularly when the actual operand location can change during program execution.
Important Point
Indirect addressing generally requires an extra memory access compared with direct addressing because the processor must first obtain the actual operand address.

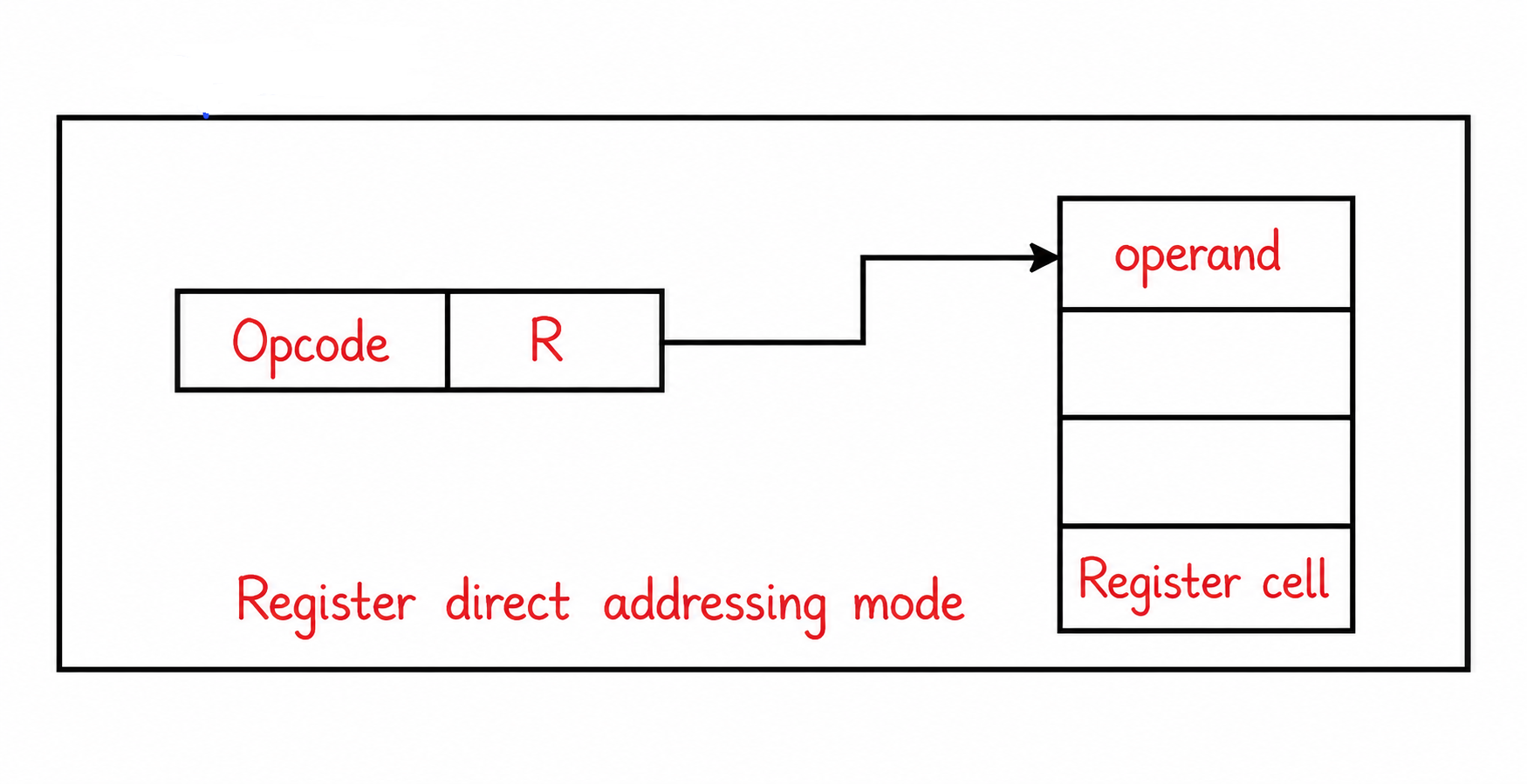

6. Register Addressing Mode
In register addressing, the operand is stored in one of the processor's registers. The instruction specifies which register should be used.
Example
ADD R1
If R1 contains 40, the processor uses that register value as the operand for the addition operation.
R1 = 40
Unlike memory-based addressing, the operand is already inside the CPU's register set.
Characteristics
- Very small address field may be sufficient because only a register number is required.
- Register access is generally faster than main-memory access.
- The number of available registers is limited.

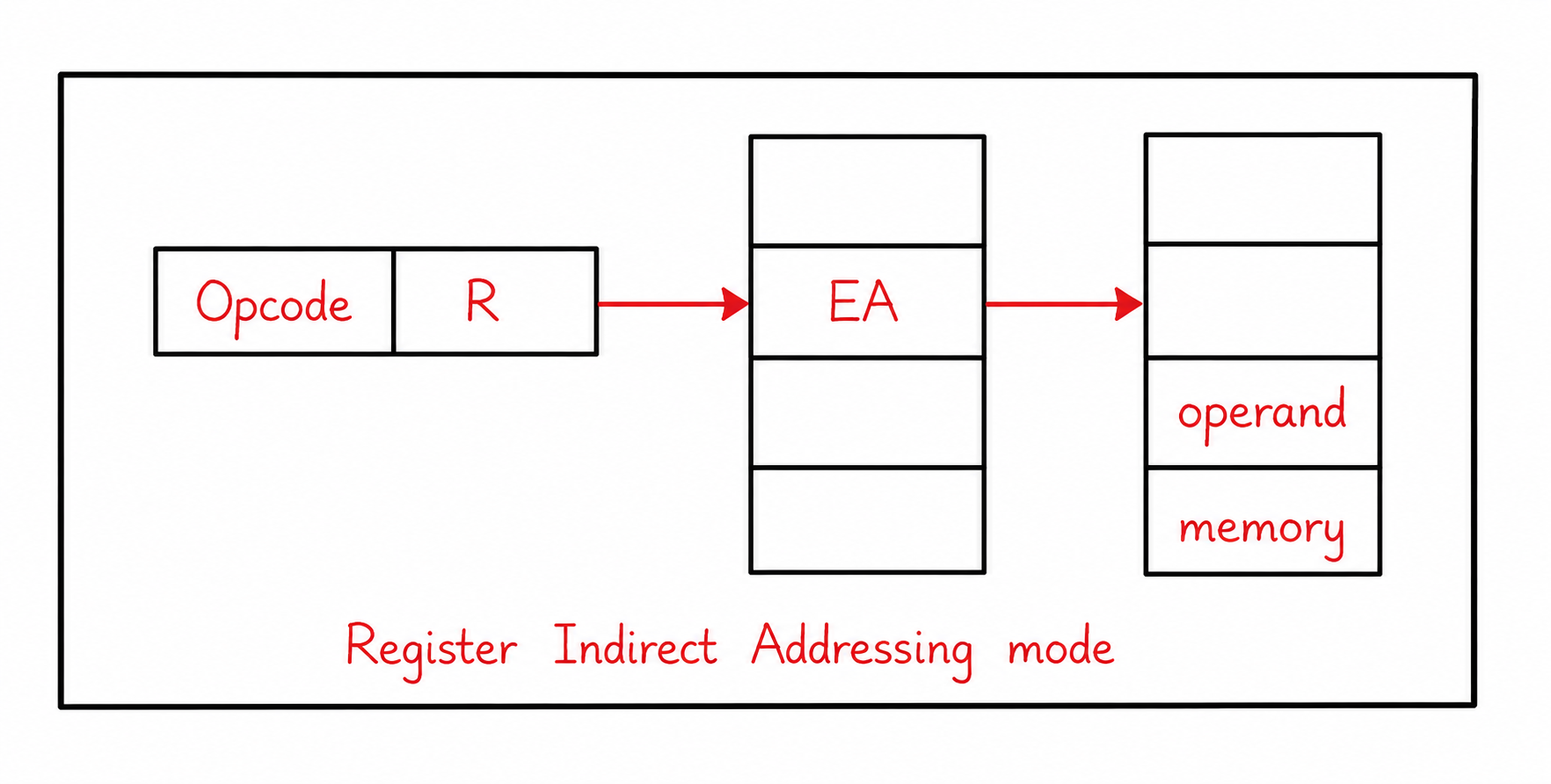

7. Register Indirect Addressing Mode
Register indirect addressing uses a register to hold the memory address of the operand. The register therefore contains an address rather than the actual data.
Effective Address
EA = Contents of Register
Example
Assume:
R1 = 800 Memory[800] = 60
If an instruction uses R1 as a register-indirect address, the processor interprets 800 as the effective address and obtains the operand from memory location 800.
EA = R1 EA = 800 Operand = Memory[800] Operand = 60
This technique is useful when the memory location of data is stored in a register, such as during pointer-based data access.

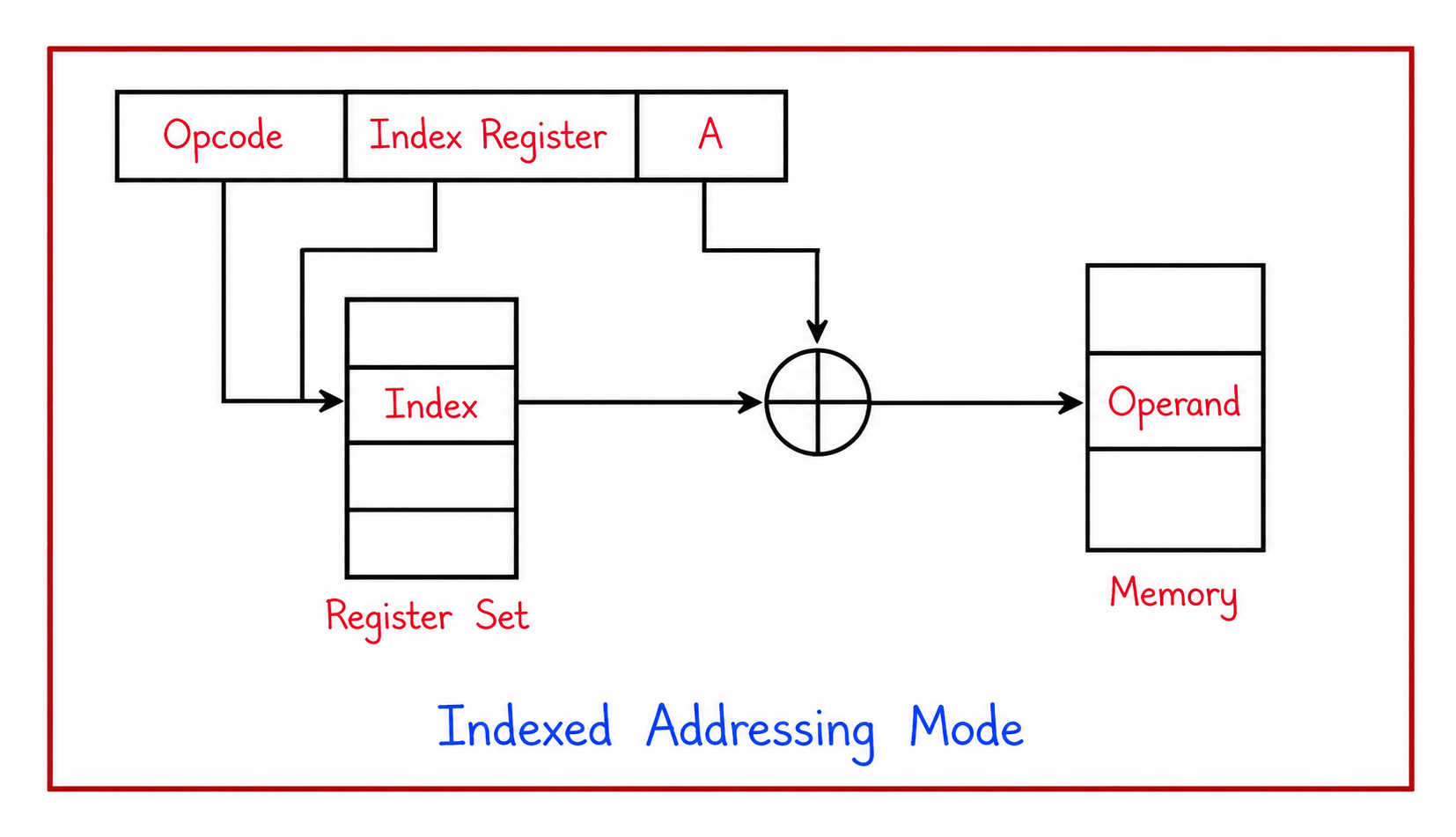

8. Indexed Addressing Mode
Indexed addressing calculates an operand address by combining an address field with the value contained in an index register. It is particularly useful when a program needs to access elements located at different offsets from a starting address.
Effective Address
EA = Address Field + Index Register
Example: Array Access
Suppose an array begins at address 1000 and the index register contains an offset of 8:
Address Field = 1000 Index Register = 8 EA = 1000 + 8 EA = 1008
The processor can therefore access the data located at address 1008.
The exact interpretation of the index value depends on the architecture and data representation. For example, some systems require the index to be scaled by the size of each array element.
Common Uses
- Array traversal
- Table lookup
- Loop-based data processing
- Accessing elements at different offsets

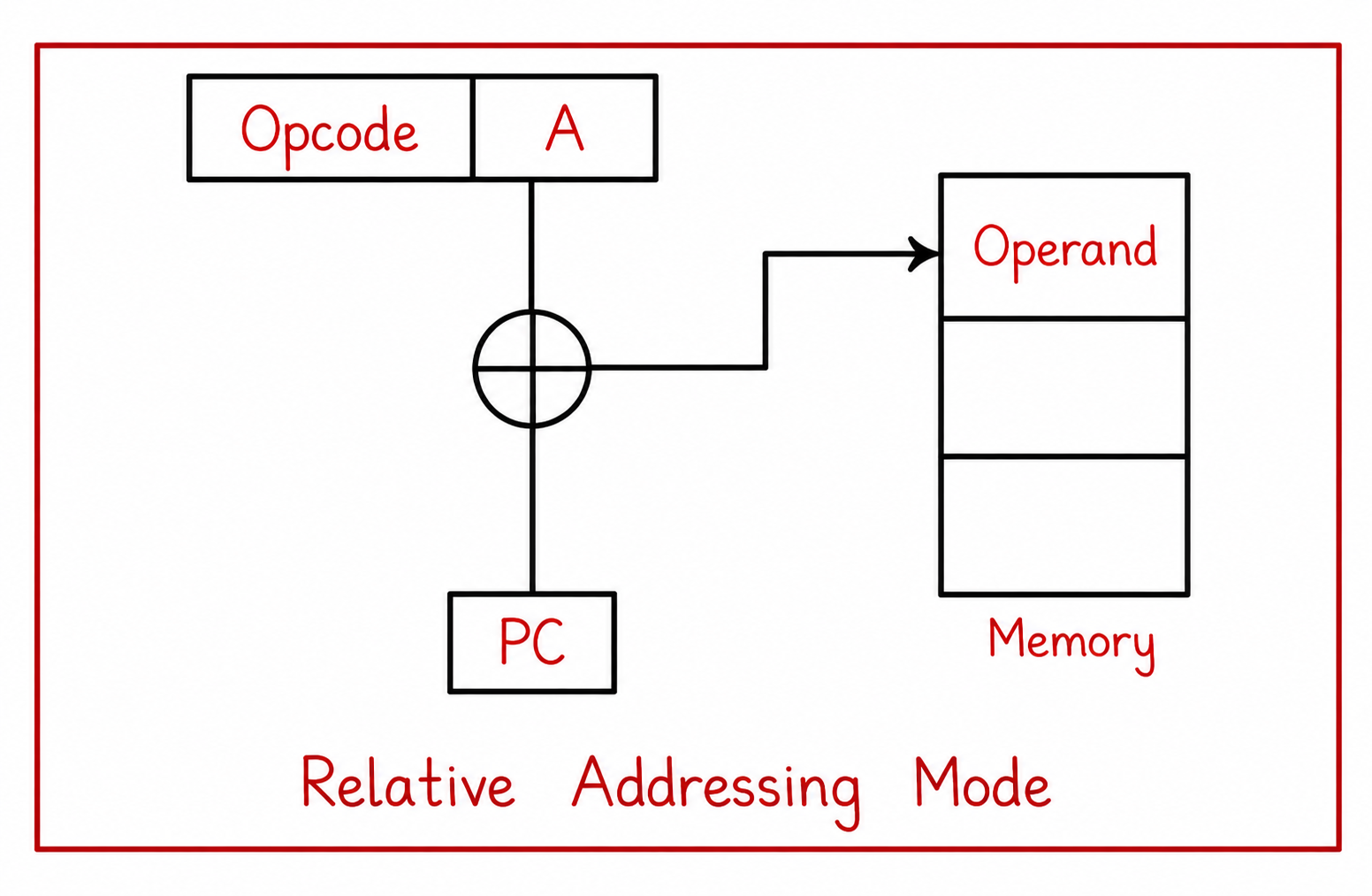

9. Relative Addressing Mode
Relative addressing calculates the target address using the current value of the Program Counter (PC) and a displacement supplied by the instruction.
Effective Address
EA = PC + Displacement
Example
Suppose:
PC = 2000 Displacement = 120
Then:
EA = 2000 + 120 EA = 2120
The processor can use this calculated address as the target of a branch or related control-transfer instruction.
Relative addressing is useful because the target can be represented as an offset from the current instruction location rather than requiring the complete target address to be stored in every instruction.
Common Use
- Conditional branches
- Loops
- Jump instructions
- Position-related code

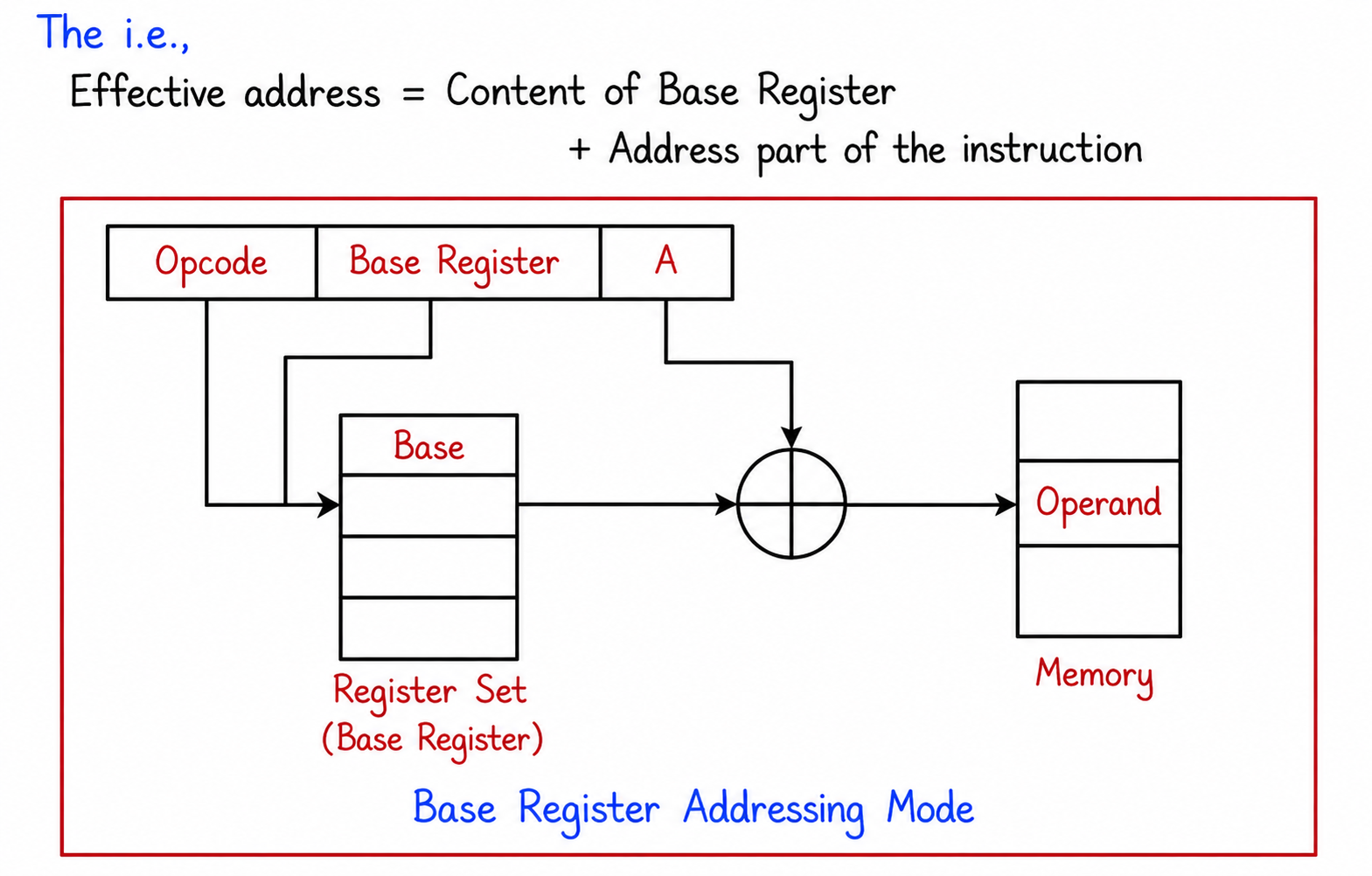

10. Base Register Addressing Mode
In base register addressing, a register stores the starting address of a memory region and the instruction supplies a displacement. The processor adds the two values to obtain the effective address.
Effective Address
EA = Base Register + Displacement
Example
Base Register = 4000 Displacement = 120 EA = 4000 + 120 EA = 4120
This method is useful when several related data items are located at different offsets from a common starting address.
Typical Uses
- Accessing fields within a memory block
- Program relocation
- Memory-area addressing
- Operating-system and compiler-related memory management

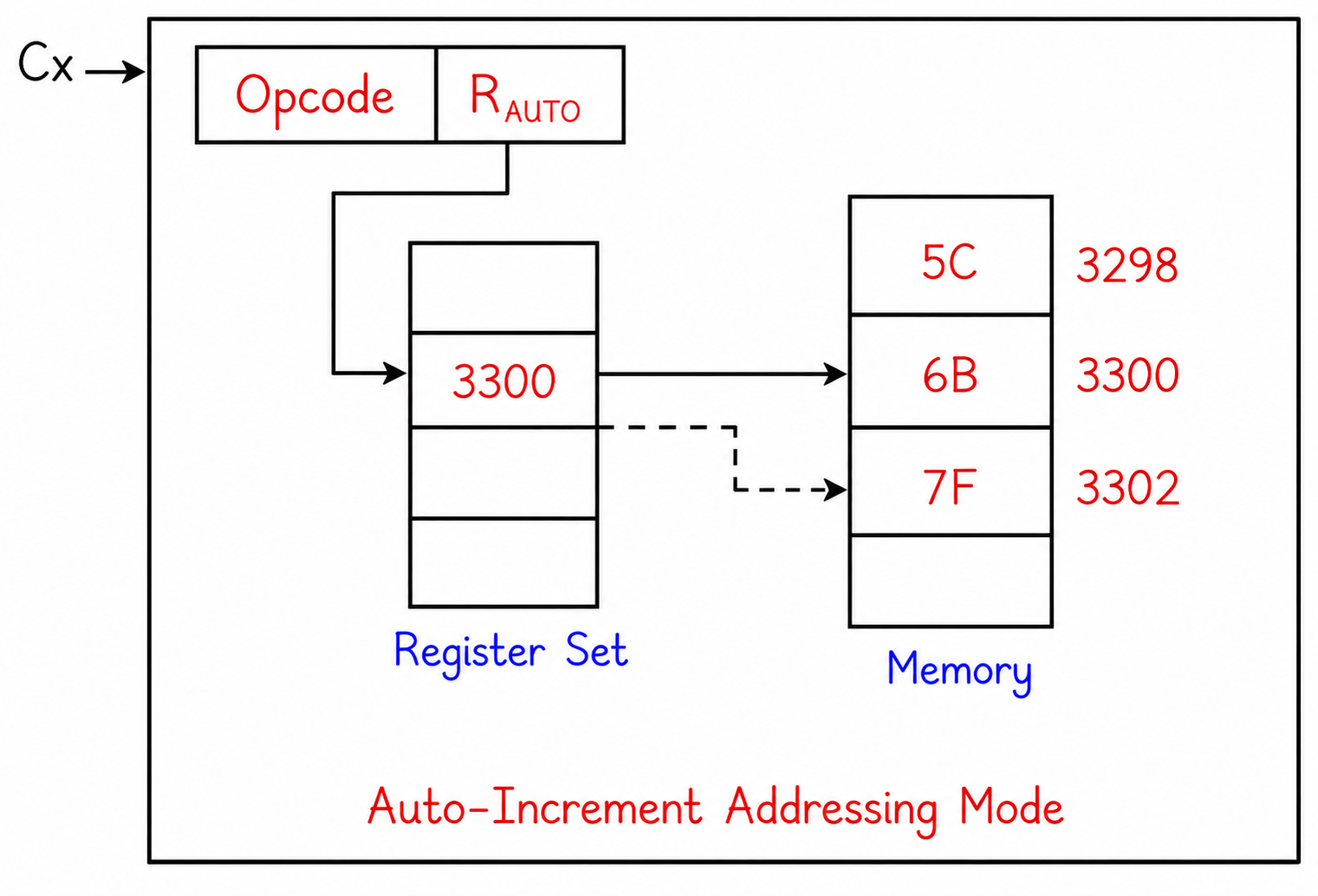

11. Auto Increment Addressing Mode
In auto increment addressing, a register contains the address of the operand. After the operand is accessed, the register is automatically increased.
Concept
EA = R R = R + Increment
For example, assume R1 contains 1000. The processor can access the operand at address 1000 and then update R1 so that it points to the next data item.
Initial R1 = 1000 Access address = 1000 R1 = R1 + increment
The actual increment normally depends on the processor architecture and the size of the data being accessed.
Useful For
- Sequential array processing
- Buffer traversal
- Reading consecutive memory locations

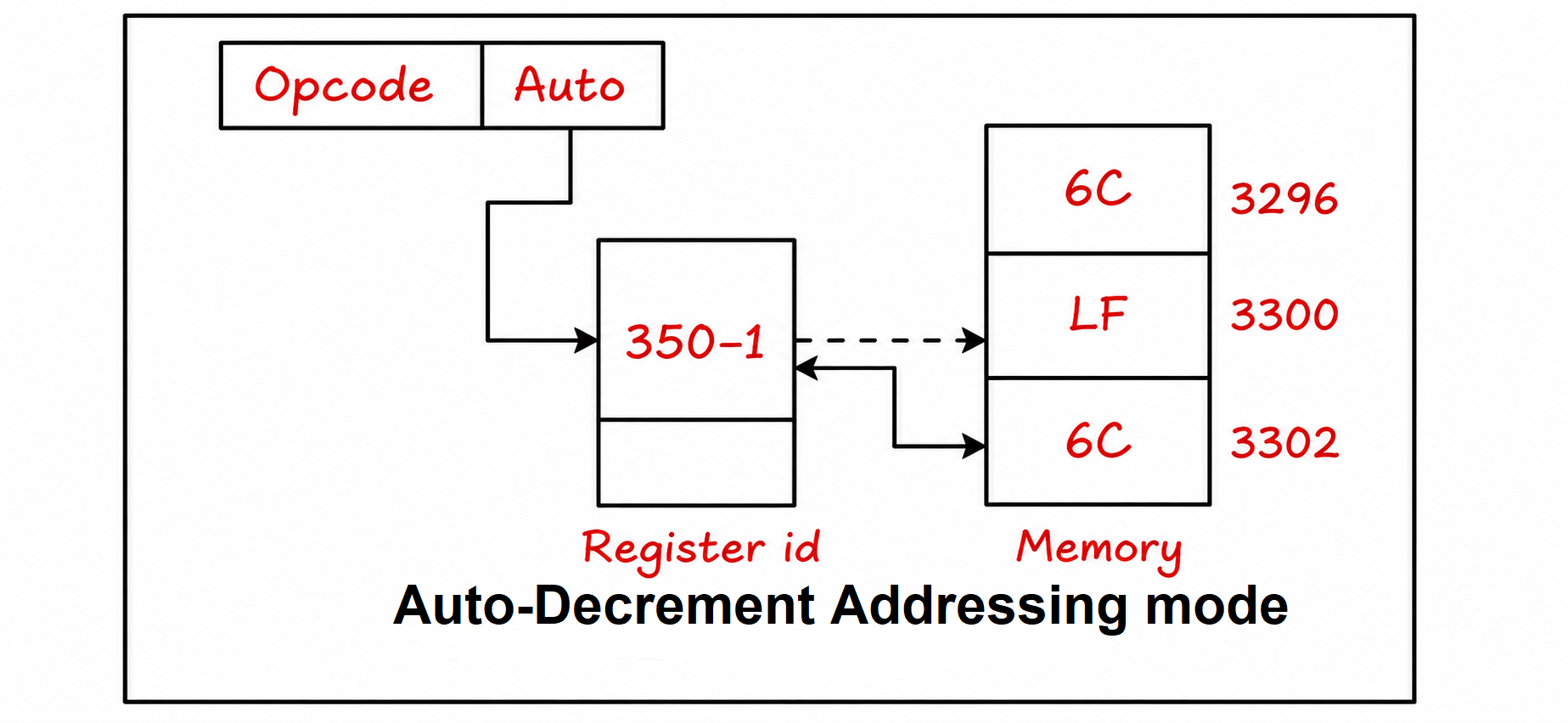

12. Auto Decrement Addressing Mode
Auto decrement addressing performs the reverse operation of auto increment addressing. The register is decreased before the operand is accessed.
Concept
R = R - Decrement EA = R
Suppose R1 initially contains 1000. If the processor decrements it before accessing memory, the updated value becomes the address used for the operand.
Initial R1 = 1000 R1 = R1 - decrement EA = R1
This approach is useful for operations that move through memory in a reverse direction and is also associated with stack-oriented implementations.
Addressing Modes: Quick Comparison
| Mode | Where Operand Information Comes From | EA / Main Rule | Typical Use |
|---|---|---|---|
| Implied | Defined by instruction | No explicit address | Accumulator operations |
| Immediate | Instruction itself | Operand is included directly | Constants |
| Direct | Memory | EA = Address Field | Known memory locations |
| Indirect | Memory through another address | EA = Memory[Address Field] | Pointer-like access |
| Register | CPU register | Operand is in register | Fast register operations |
| Register Indirect | Memory address in register | EA = Register contents | Pointer-based access |
| Indexed | Address + index | EA = Address + Index | Arrays and tables |
| Relative | PC + displacement | EA = PC + Displacement | Branches and jumps |
| Base Register | Base + displacement | EA = Base + Displacement | Memory blocks and relocation |
| Auto Increment | Register-based address | Access, then increment | Sequential traversal |
| Auto Decrement | Register-based address | Decrement, then access | Reverse traversal and stacks |
Direct vs Indirect Addressing
Direct and indirect addressing are often confused because both involve a memory address field. The important difference is what that field represents.
| Direct Addressing | Indirect Addressing |
|---|---|
| The address field identifies the operand's memory location. | The address field identifies a location containing the operand's address. |
| One level of memory addressing is required to obtain the operand. | An additional memory lookup is normally required to obtain the operand address. |
| EA = Address Field | EA = Memory[Address Field] |
| Simple to implement. | More flexible for dynamically located data. |
Register vs Register Indirect Addressing
The word register appears in both modes, but the register contains different information.
| Register Addressing | Register Indirect Addressing |
|---|---|
| The register contains the actual operand. | The register contains the memory address of the operand. |
| No memory lookup is required to obtain the operand itself. | Memory must be accessed using the address stored in the register. |
| Example: R1 = 50 means operand is 50. | Example: R1 = 800 means operand is stored at memory location 800. |
Addressing Modes and Memory Access
The number and type of memory accesses can influence instruction execution. Addressing modes that keep the operand inside the instruction or a CPU register generally avoid an additional memory read for the operand.
| Mode | Separate Operand Memory Access? |
|---|---|
| Immediate | No |
| Register | No |
| Direct | Normally one memory access |
| Register Indirect | Normally one memory access |
| Indirect | Normally more than one memory access |
The exact number of memory accesses can vary with the processor architecture, caching system, instruction type, and implementation. Therefore, these values should be understood as the basic addressing model rather than universal timing rules.
How to Calculate Effective Address: Solved Examples
Example 1: Direct Addressing
Address Field = 600 EA = 600
The operand is located at memory address 600.
Example 2: Indirect Addressing
Address Field = 600 Memory[600] = 1500 EA = Memory[600] EA = 1500
The processor must first obtain 1500 from memory location 600. The operand is then accessed from address 1500.
Example 3: Indexed Addressing
Address Field = 2000 Index Register = 15 EA = 2000 + 15 EA = 2015
Example 4: Relative Addressing
PC = 5000 Displacement = 80 EA = 5000 + 80 EA = 5080
Example 5: Base Register Addressing
Base Register = 7000 Displacement = 250 EA = 7000 + 250 EA = 7250
Applications of Addressing Modes
Addressing modes are not merely theoretical features. They support common operations performed by processors, compilers, and operating systems.
- Array processing: Indexed addressing can calculate the location of different elements.
- Branch instructions: Relative addressing can represent a target using a displacement from the current instruction.
- Pointer access: Register indirect addressing can use an address stored in a register.
- Stack operations: Stack, auto increment, and auto decrement techniques can support stack manipulation depending on the architecture.
- Memory blocks: Base register addressing can combine a common starting address with different offsets.
- Constant values: Immediate addressing is suitable when an instruction needs a fixed value.
Important Points for Exams and Interviews
- Immediate addressing: the operand value is part of the instruction.
- Direct addressing: the address field directly gives the operand's memory address.
- Indirect addressing: the address field points to a location containing the operand address.
- Register addressing: the operand is stored in a register.
- Register indirect: the register contains the operand's memory address.
- Indexed addressing: an index is combined with an address field.
- Relative addressing: PC is combined with a displacement.
- Base register addressing: a base address is combined with a displacement.
- Auto increment: the address is used and the register is then advanced.
- Auto decrement: the register is adjusted before the address is used.
Common Confusions About Addressing Modes
1. Immediate Address Is Not the Same as a Memory Address
In immediate addressing, the value written in the instruction is the operand itself. In direct addressing, the value represents a memory location.
2. Register Addressing and Register Indirect Addressing Are Different
If a register contains the actual data, register addressing is being used. If the register contains a memory address and the processor follows that address to obtain the data, register indirect addressing is being used.
3. Direct and Indirect Addressing Are Not Interchangeable
Direct addressing uses the address field as the final operand address. Indirect addressing treats that field as a reference to another location that supplies the final address.
4. EA Does Not Always Mean a Memory Lookup
Effective-address calculation is mainly discussed for memory operands. In immediate or register addressing, the operand can already be available without calculating a conventional memory address.
Advantages of Using Multiple Addressing Modes
Providing several addressing modes allows an instruction set to represent different data-access patterns efficiently. Instead of forcing every instruction to contain a complete memory address, the processor can use registers, offsets, constants, or relative positions as appropriate.
This flexibility can reduce instruction size in some situations, simplify access to structured data, and provide useful support for arrays, pointers, branches, and stack operations.
Frequently Asked Questions
What is an addressing mode?
An addressing mode defines how a processor determines the location or value of an operand used by an instruction.
What is Effective Address?
Effective Address, or EA, is the address obtained after applying the addressing rule used by an instruction to locate a memory operand.
Which addressing mode contains the operand directly in the instruction?
Immediate addressing mode contains the actual operand value in the instruction.
What is the formula for direct addressing?
EA = Address Field
What is the formula for indirect addressing?
EA = Memory[Address Field]
What is the difference between register and register indirect addressing?
In register addressing, the register contains the operand. In register indirect addressing, the register contains the memory address where the operand is stored.
Which addressing mode is commonly associated with arrays?
Indexed addressing is commonly used for accessing array and table elements because an index can be combined with a starting address.
Which addressing mode uses the Program Counter?
Relative addressing uses the Program Counter together with a displacement to calculate a target address.
Why is indirect addressing more complex than direct addressing?
Indirect addressing requires the processor to obtain the actual operand address from another location before accessing the operand, adding another level of address resolution.
Conclusion
Addressing modes describe the different ways a processor can locate or obtain operands during instruction execution. The operand may be supplied directly by the instruction, stored in a register, located at a known memory address, or reached through an address calculation.
The most important modes to understand are immediate, direct, indirect, register, register indirect, indexed, relative, and base register addressing. Each one solves a different data-access problem. Indexed addressing is particularly useful for arrays, relative addressing is important for control transfer, and register indirect addressing is useful when addresses are maintained in registers.
A good way to master addressing modes is to focus on three questions for every mode: Where is the operand information stored? How is the effective address obtained? How many levels of memory access are involved? Once these three points are clear, the differences between addressing modes become much easier to remember and apply in COA problems.
